  • Motocam360 Plug n Play ECM

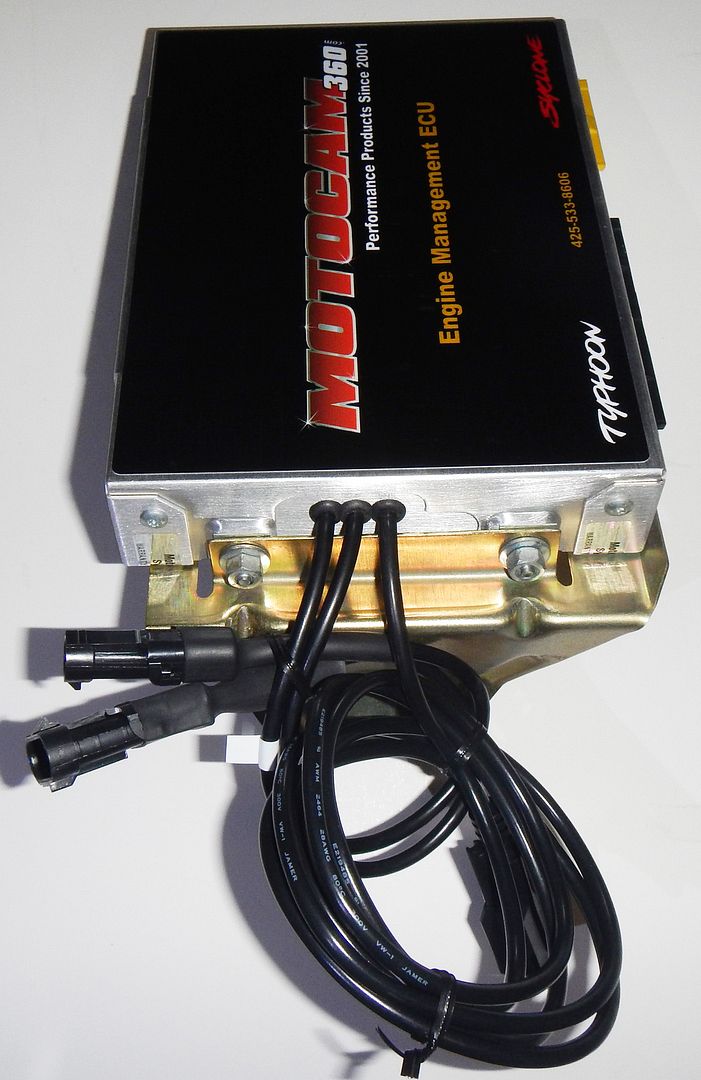

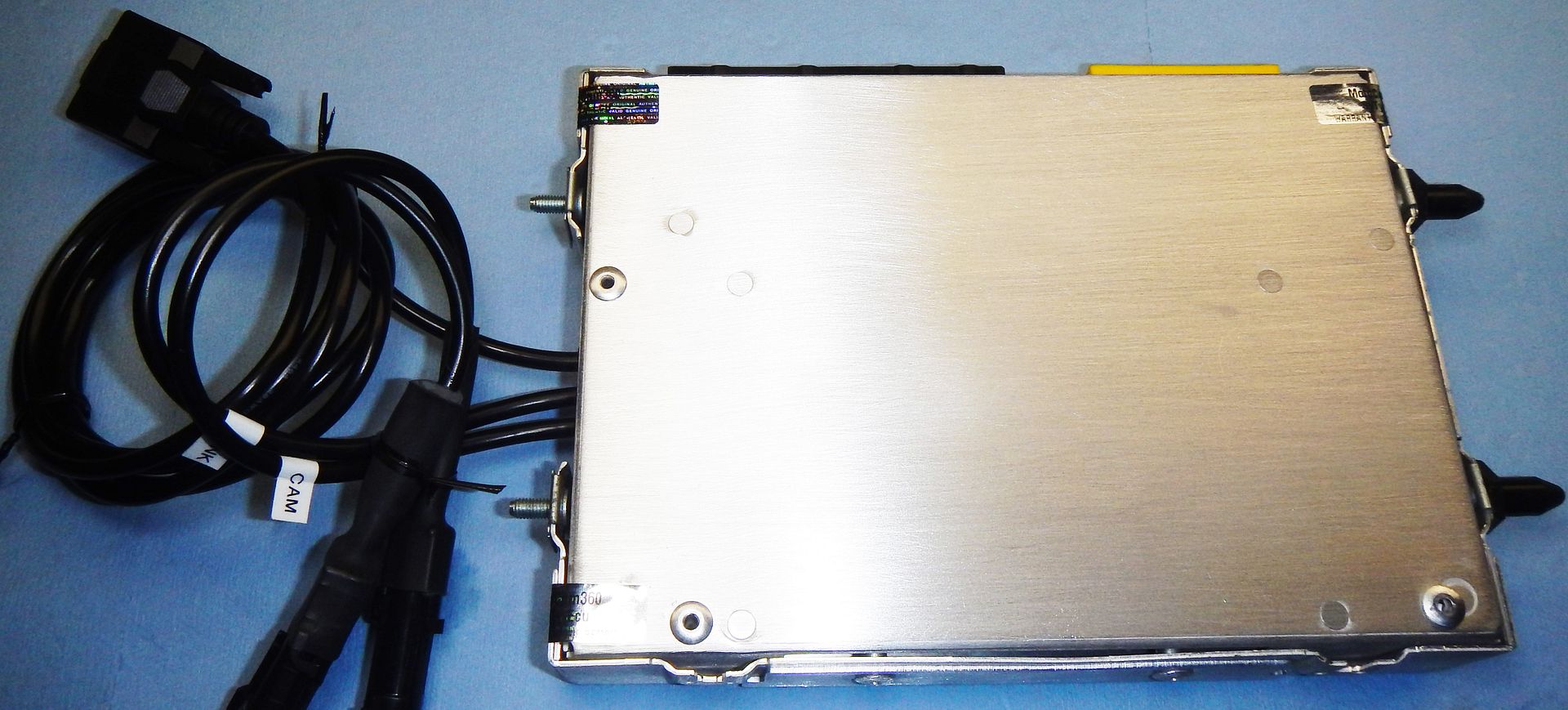

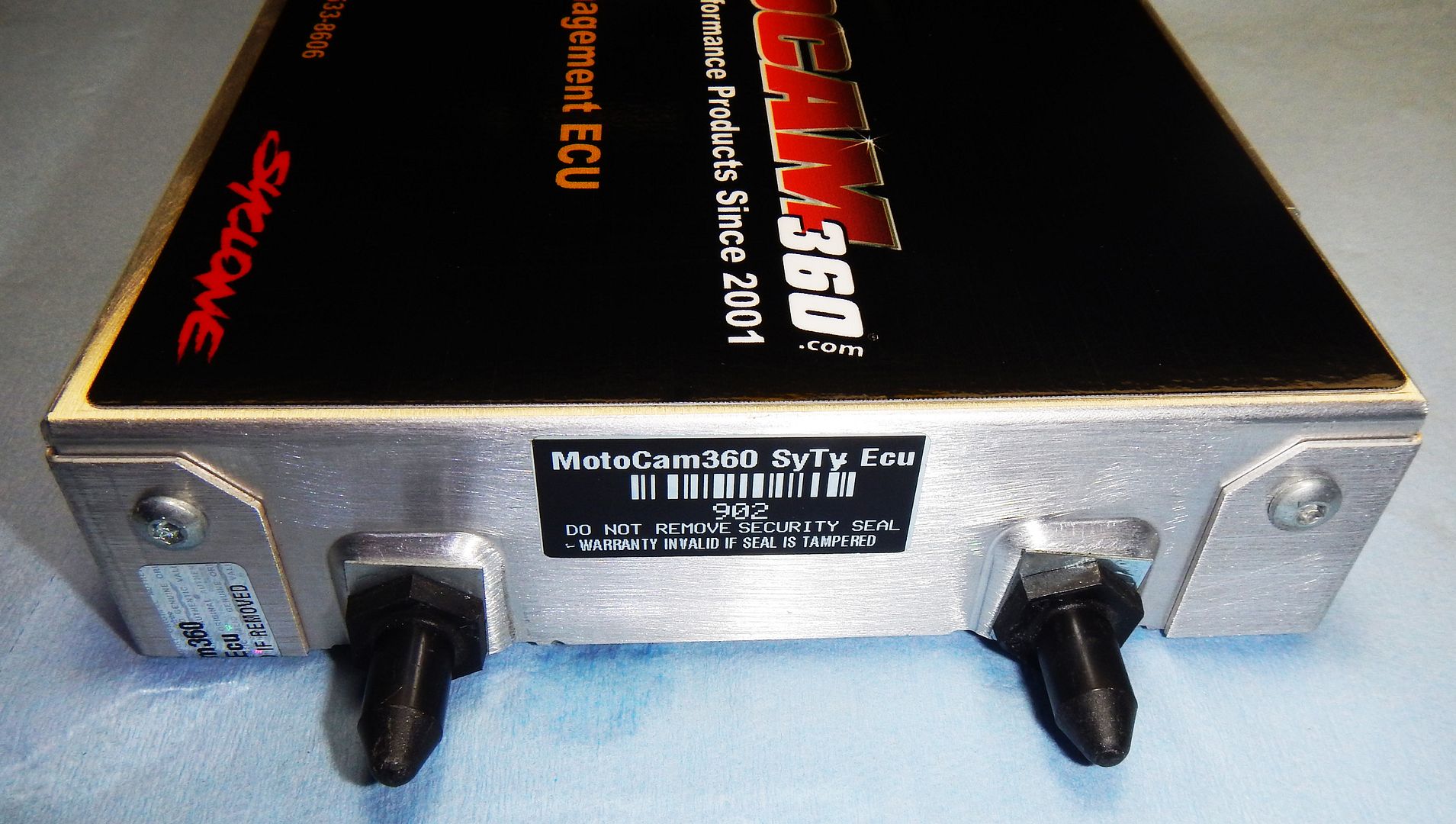

    We offer a Plug n Play ECM/ECU for the Syclone and Typhoon. This system does not require any modifications to factory wire harnesses. All you have to do is install a good wideband O2 sensor. The ECM has an RS232 serial cable that is used to connect a laptop for tuning (Tuner Studio is the software at $60 per seat). There is a 16Gb SD card installed internally for data logging, or it can be done directly from the serial cable to a laptop.

    Stage 1: 5 minute install, no permanent modifications to vehicle - $1599.99
    Stage 2: Eliminates distributor and converts truck to coilpack ignition with cam/crank triggers and a new timing cover - $1999
    (we provide a list of hard parts to acquire for the ignition conversion, which is approx $650)

    These are some of the popular options that can be added to either stage:

    E85 sensor: comes with AN fittings - $115
    Torque Convertor Lockup: - $99
    Knock display: - $109









    You can find more information on our website at:
    https://www.motocam360.com/index.php/products/syty
    Last edited by MotoCam360; 02-17-2019, 01:00 AM.

  • #2

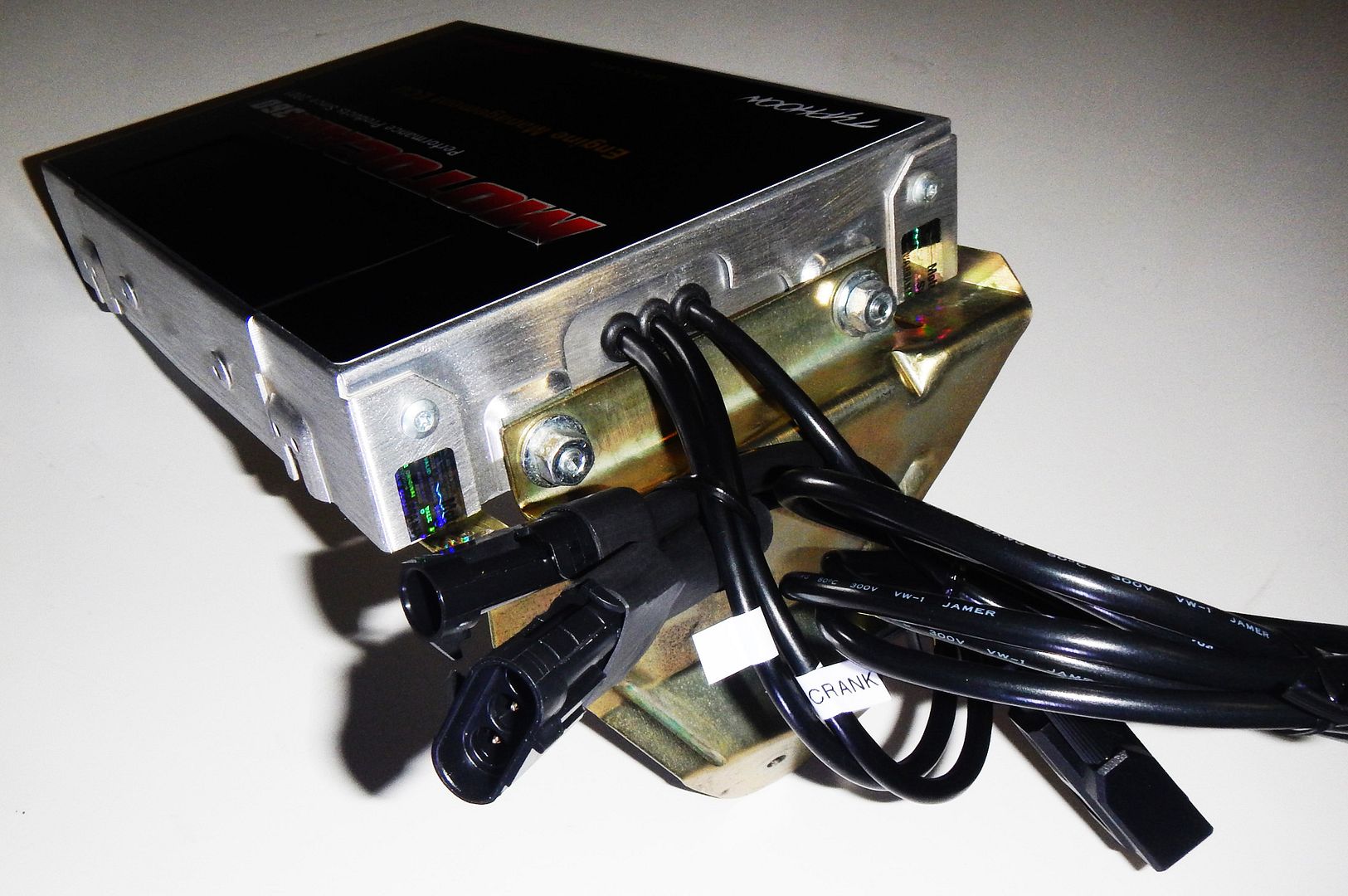

    This week we built and shipped a special Stage 2 (cam, crank sensor) system with the Torque Convertor Lockup feature:









    By adding a custom OBD1 cable to this system, we keep in the spirit of true plug-n-play so that all you have to do is plug into your oem OBD1 port below the steering wheel and then set your preferences in the software:


    Comment


    • #3
      Here is a new Stage 1 variation that we recently built for a customer - it has 2 soft start fan controls + torque convertor lockup + E85:

      Comment
